Description

SAMPLE FILTERS
PRODUCT CODE: MINIATURE DISPOSABLE FILTER UNITS


Prevent cross-contamination of samples

Pressure ratings up to 125 psig (8.62 barg)

Temperature to 275°F (135°C)

Completely disposable, constructed of recyclable plastics

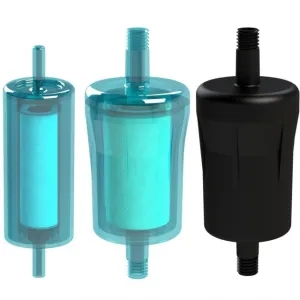

MODELS 9922-05, 9933-05, 4433-05 AND 9900-05

The 99XX-05 models are the smallest Disposable Filter Units with 11.7 ml internal volume. These models are used in low flow gas or liquid sampling applications, such as liquids to specific-ion analyzers or gases to personal samplers. The model 9900-05-BK has a color indicating feature, which turns the cartridge red when saturated with oil. The model 4433-05 has 1/4” and 3/8” Barb Connections molded into the inlet/outlet ports.

MODELS 9922-11, 9933-11, AND 8800-12

Models 9922-11, 9933-11, and 8800-12 are used for applications similar to the smaller DFUs (Models 9922- 05 and 9933-05) which require greater solids holding capacity and can tolerate the increased retention time.

MODEL 8833-11

These Disposable Filter Units are used as continuous coalescing filters with a third port serving as the drain, slip-stream, or by-pass port. Parker Hannifin offers a manual drain valve for removal of coalesced liquids from the Type 8833-11-DX. Drain Valve: 1/8” NPT (male) x 1/8” ID Tubing. (Requires fitting part No. 11977). Part No. 20120.

MODEL 9953-11

This model snaps together for easy filter cartridge changeouts. It is designed primarily for low pressure or mild vacuum applications. It is ideal for capturing samples and perform analysis or record weights over time. If used with a X-tube, it is a very effective silencer to compress inlet noise to small pumps.
