dust filtration, coalescers, separators - we can all produce!
No matter which brand - we can produce!
No matter which model - we can produce!
You have needs - please contact us.
|
FEATURES
Completely Disposable
Blue Transparent Nylon & Virgin Kynar Body
Four Sizes Available
Five Grades of Filtration
Two or Three Port Design
Filter Gases & Liquids
APPLICATIONS
HVAC Protection
Analyzer & Sensor Protection
Low Cost Scrubbers
Last Chance Air Purifier
Zero Air Gas Calibration

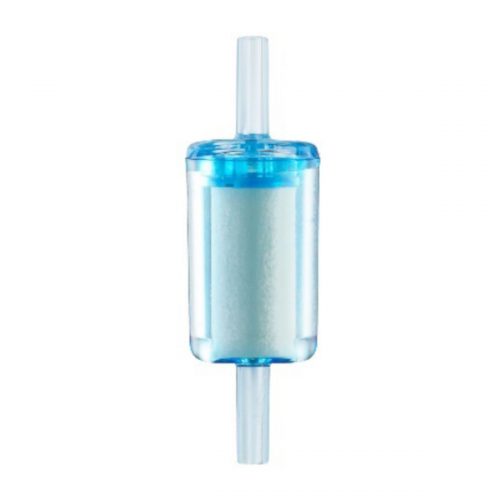

Our Disposable In-Line Filters consist of permanently welded housings with encapsulated filter elements. This makes them ideal for portable analyzers and other analysis systems requiring a robust, easily replaceable filter. A choice of body materials makes them suitable for a wide range of chemical environments.
The economical DIF Series offers all the advantages of a microfiber filter element for high efficiency gas and liquid filtration, with the convenience of complete disposability. We have the ability to insert other filter media, such as PTFE or Stainless Steel Screens for course filtration.
A variety of barb/connection options are readily available from inventory. Keep in mind custom product can easily be built to order, regardless of quantity.

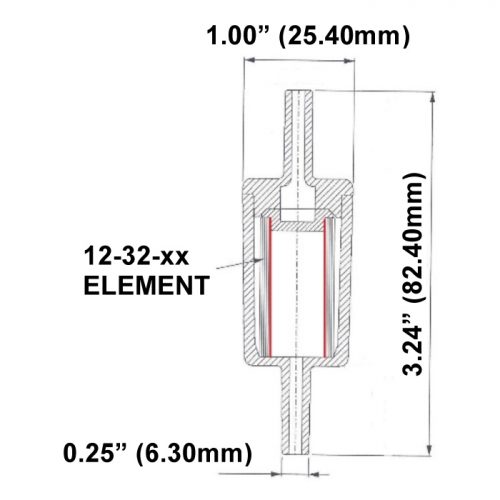

Indicating Standard OEM Size with (DIF-BN50I)
The DIF-BN50I contains a red dye that bleeds through the element to provide an accurate visual indication when oil is present. The red dye will permeate through the element upon oil saturation. One common application are HVAC control panels. This dye can be added to any of our microfiber elements.
Simply Order as DIF-BN50I.

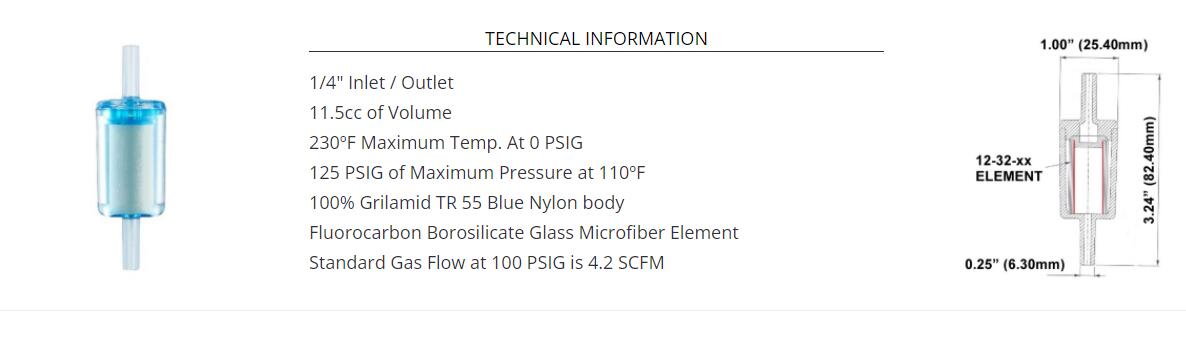

1/4" Inlet / Outlet
11.5cc of Volume
230ºF Maximum Temp. At 0 PSIG
125 PSIG of Maximum Pressure at 110ºF
100% Grilamid TR 55 Blue Nylon body
Fluorocarbon Borosilicate Glass Microfiber Element
Standard Gas Flow at 100 PSIG is 4.2 SCFM
