FEATURES
Completely Disposable
Blue Transparent Nylon & Virgin Kynar Body
Four Sizes Available
Five Grades of Filtration
Two or Three Port Design
Filter Gases & Liquids
APPLICATIONS
HVAC Protection
Analyzer & Sensor Protection
Low Cost Scrubbers
Last Chance Air Purifier
Zero Air Gas Calibration
Our Disposable In-Line Filters consist of permanently welded housings with encapsulated filter elements. This makes them ideal for portable analyzers and other analysis systems requiring a robust, easily replaceable filter. A choice of body materials makes them suitable for a wide range of chemical environments.
The economical DIF Series offers all the advantages of a microfiber filter element for high efficiency gas and liquid filtration, with the convenience of complete disposability. We have the ability to insert other filter media, such as PTFE or Stainless Steel Screens for course filtration.
A variety of barb/connection options are readily available from inventory. Keep in mind custom product can easily be built to order, regardless of quantity.

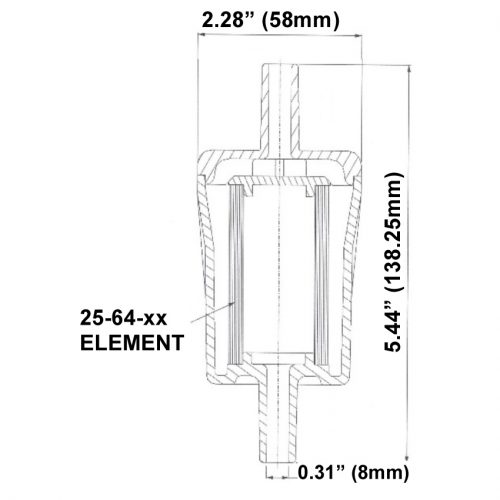

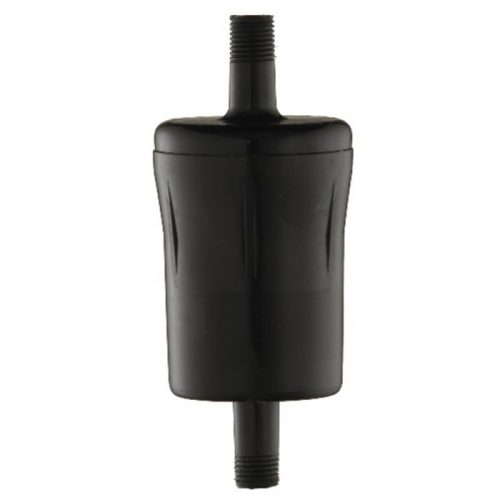

Large OEM Maximum Flow DIF for Chemical Compatibility (DIF-LKxx)
The DIF-LK assemblies are constructed of black kynar for corrosive applications. Compatible applications include (not limited to): sulfuric & hydrochloric acids, chlorine (gas or liquid), hydrogen peroxide, Etc.
Standard Grade: DIF-LK60 (99.5% @ 0.01 Micron) Other Grades Available: 30, 40, 50, 70, 80

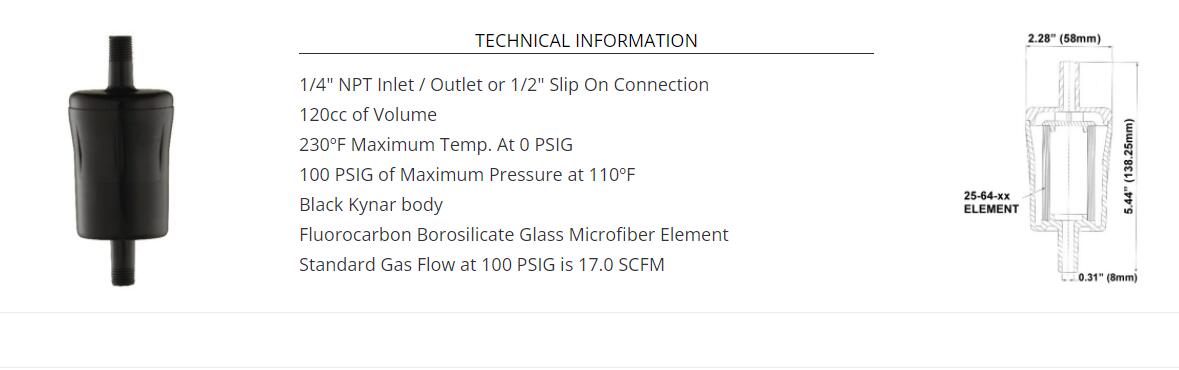

1/4" NPT Inlet / Outlet or 1/2" Slip On Connection
120cc of Volume
230ºF Maximum Temp. At 0 PSIG
100 PSIG of Maximum Pressure at 110ºF
Black Kynar body
Fluorocarbon Borosilicate Glass Microfiber Element
Standard Gas Flow at 100 PSIG is 17.0 SCFM
