Fluorocarbon Borosilicate Glass Microfiber Element DIF-LKxxPT
Air filtration, liquid filtration, gas filtration, hydraulic oil filtration, petroleum filtration,
dust filtration, coalescers, separators - we can all produce!
No matter which brand - we can produce!
No matter which model - we can produce!
You have needs - please contact us.

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description


FEATURES

  • Completely Disposable

  • Blue Transparent Nylon & Virgin Kynar Body

  • Four Sizes Available

  • Five Grades of Filtration

  • Two or Three Port Design

  • Filter Gases & Liquids

APPLICATIONS

  • HVAC Protection

  • Analyzer & Sensor Protection

  • Low Cost Scrubbers

  • Last Chance Air Purifier

  • Zero Air Gas Calibration

Our Disposable In-Line Filters consist of permanently welded housings with encapsulated filter elements. This makes them ideal for portable analyzers and other analysis systems requiring a robust, easily replaceable filter. A choice of body materials makes them suitable for a wide range of chemical environments.

The economical DIF Series offers all the advantages of a microfiber filter element for high efficiency gas and liquid filtration, with the convenience of complete disposability. We have the ability to insert other filter media, such as PTFE or Stainless Steel Screens for course filtration.

A variety of barb/connection options are readily available from inventory. Keep in mind custom product can easily be built to order, regardless of quantity.

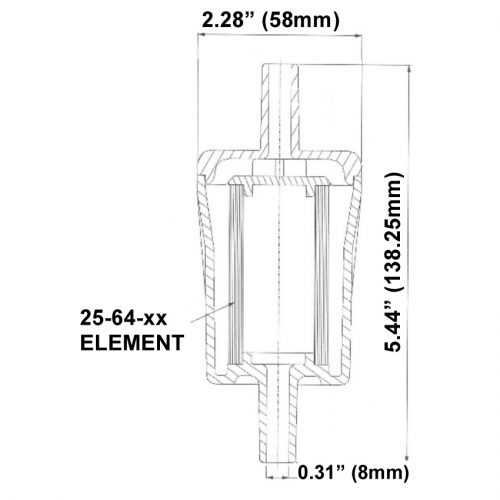

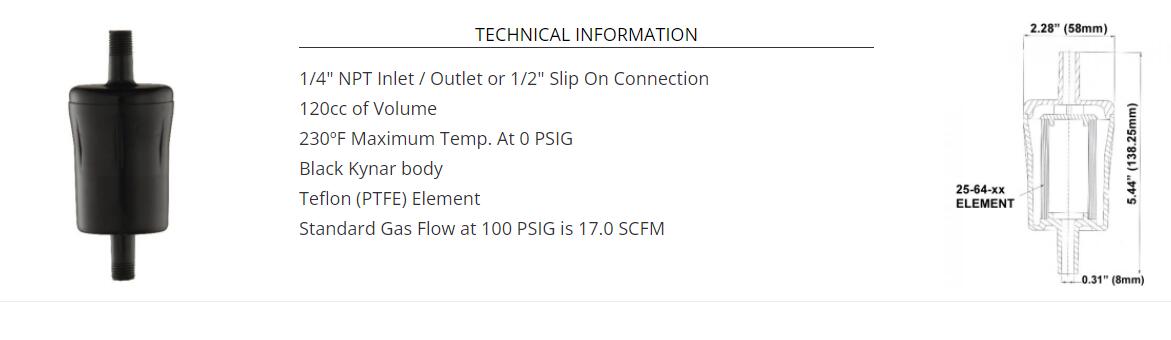

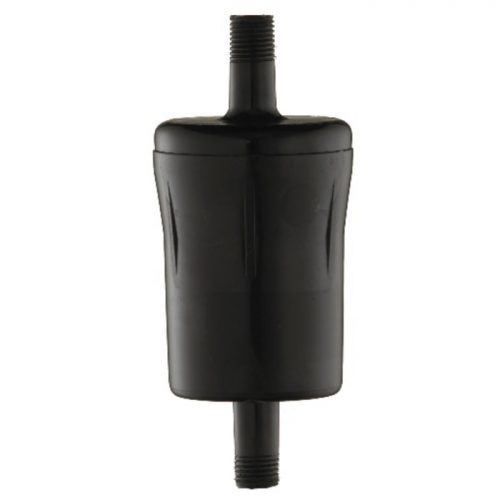

Large Maximum Flow DIF for Chemical Compatibility (DIF-LKxxPT)

The DIF-LK assemblies are constructed of black kynar for corrosive applications. Compatible applications include (not limited to): sulfuric & hydrochloric acids, chlorine (gas or liquid), hydrogen peroxide, Etc.
Standard Grade: DIF-LK25PT – Other Micron Available: 03PT


  • 1/4" NPT Inlet / Outlet or 1/2" Slip On Connection

  • 120cc of Volume

  • 230ºF Maximum Temp. At 0 PSIG

  • 100 PSIG of Maximum Pressure at 110ºF

  • Black Kynar body

  • Fluorocarbon Borosilicate Glass Microfiber Element

  • Standard Gas Flow at 100 PSIG is 17.0 SCFM
