dust filtration, coalescers, separators - we can all produce!
No matter which brand - we can produce!
No matter which model - we can produce!
You have needs - please contact us.
|
FEATURES
Completely Disposable
Blue Transparent Nylon & Virgin Kynar Body
Four Body Sizes
Wide Range of Adsorbents (DIA)
No Handling of Loose Adsorbents
APPLICATIONS
HVAC Purification
Analyzer & Sensor Protection
Low Cost Scrubbers
Last Chance Purifier
Zero Air Gas Calibration
Our Disposable In-Line Adsorbers consist of nylon or kynar bodies filled with granular adsorption material with integral inlet and outlet filter pads. For best results longer contact time will increase the efficiency of the desiccant media providing a more effective adsorber. A wide choice of adsorbents permits the selective removal of vapors from air and other gases. Desiccant choices are listed on page 4.

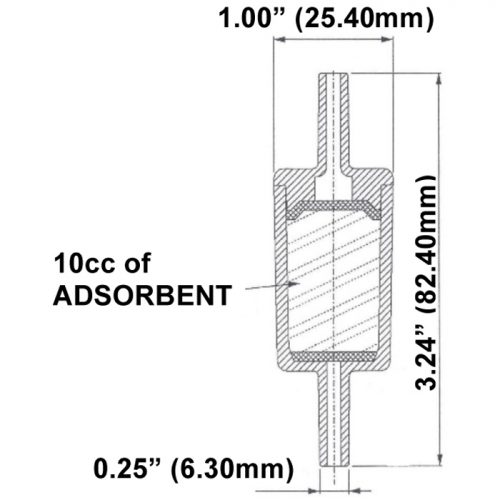

Our Disposable In-Line Adsorbers consist of granular adsorbent material ultrasonically welded into a see-through nylon or kynar body. Integral filter pads eliminate adsorbent migration. Four sizes are available, containing from 6cc up to 120cc of adsorbent.
Standard OEM Size For Chemical Compatibility Filled w/ Media (DIA-BKxx)

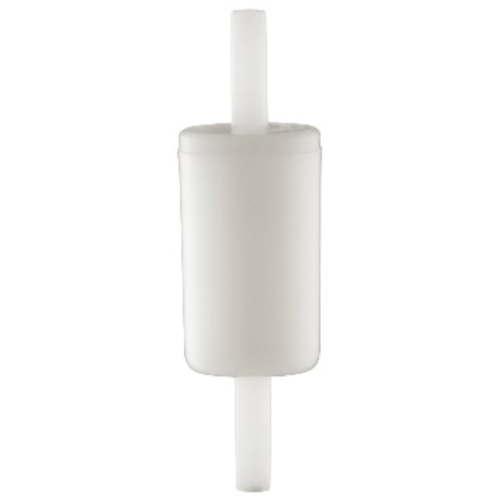

This series of DIA assemblies is constructed of virgin white kynar for corrosive applications.

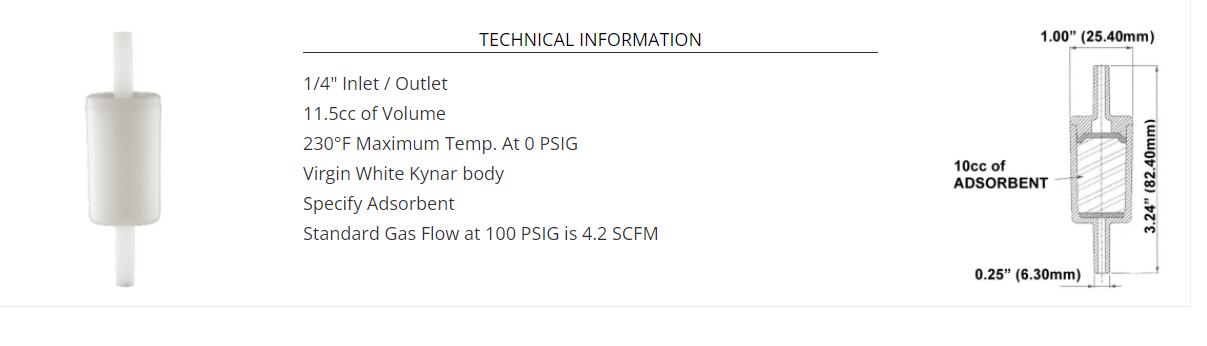

Replace “xx” with grade required CC, 4A, 13X, SG, DR, MB, PP, HO, SB, CS, e.g. DIA-BKCC1/4" Inlet / Outlet
11.5cc of Volume
230°F Maximum Temp. At 0 PSIG
Virgin White Kynar body
Specify Adsorbent
Standard Gas Flow at 100 PSIG is 4.2 SCFM
