dust filtration, coalescers, separators - we can all produce!
No matter which brand - we can produce!
No matter which model - we can produce!
You have needs - please contact us.
|
FEATURES
Completely Disposable
Blue Transparent Nylon & Virgin Kynar Body
Four Body Sizes
Wide Range of Adsorbents (DIA)
No Handling of Loose Adsorbents
APPLICATIONS
HVAC Purification
Analyzer & Sensor Protection
Low Cost Scrubbers
Last Chance Purifier
Zero Air Gas Calibration

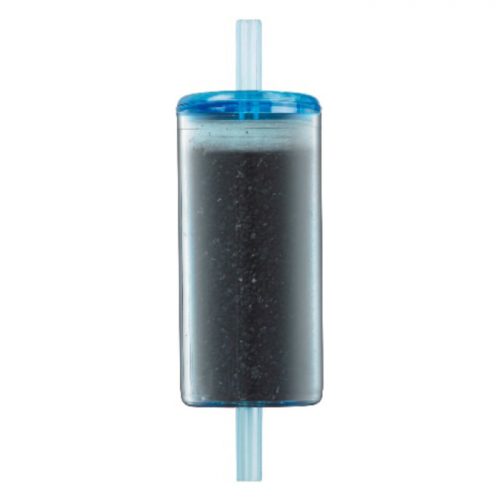

Our Disposable In-Line Adsorbers consist of nylon or kynar bodies filled with granular adsorption material with integral inlet and outlet filter pads. For best results longer contact time will increase the efficiency of the desiccant media providing a more effective adsorber. A wide choice of adsorbents permits the selective removal of vapors from air and other gases. Desiccant choices are listed on page 4.
Our Disposable In-Line Adsorbers consist of granular adsorbent material ultrasonically welded into a see-through nylon or kynar body. Integral filter pads eliminate adsorbent migration. Four sizes are available, containing from 6cc up to 120cc of adsorbent.

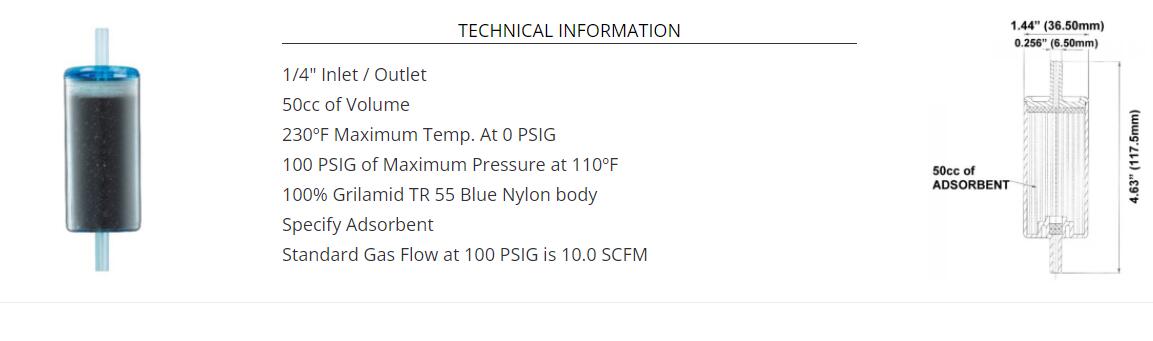

Intermediate OEM High Flow DIA w/ Media (DIA-INxx)
Our intermediate range is utilized where higher vapor holding capacity is required. Larger volume for longer service life.
Replace “xx” w/media required CC, 4A, 13X, SG, DR, MB, PP, HO, SB, CS1/4" Inlet / Outlet

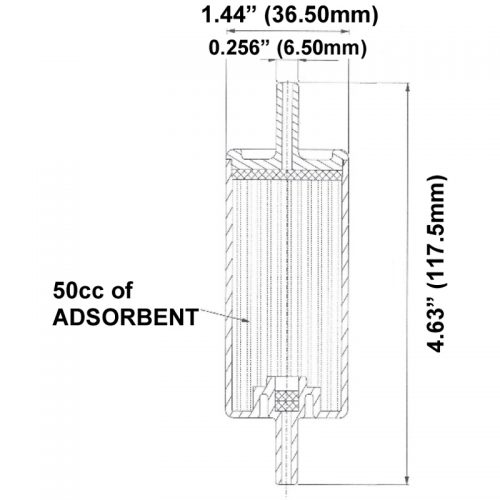

50cc of Volume
230ºF Maximum Temp. At 0 PSIG
100 PSIG of Maximum Pressure at 110ºF
100% Grilamid TR 55 Blue Nylon body
Specify Adsorbent
Standard Gas Flow at 100 PSIG is 10.0 SCFM
