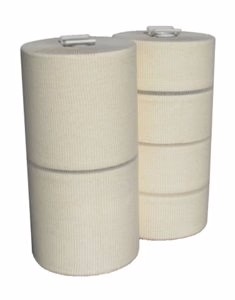

Depth elements are used in low flow filtration systems such as applications containing soft contaminants, sludge, slime, or waxes. Fluitek depth elements are most commonly used to clean or recycle hydraulic oil, compressor oil, gear oil, quench oil, or various other fluids with off-line or side-stream kidney loop systems.
This series of elements is available in several different sizes and forms. There are a lot of different options of medias including cellulose and synthetic fiber blended medias. Fluitek depth filters are available in an efficiency range from 1 – 150 micron and up to a 350°F max temperature rating. The prime advantages of depth filtration elements are high dirt holding capacity, long filtration cycles, and high retention of small particulate in polishing applications.
Key Benefits
Helps clean (not just screen) the oil by dislodging contaminants
Achieves particle removal below 1 micron
Standard Features
Axial flow between the layers of the media Performance B< (c) = 1,000 (per ISO 16889)
High dirt-holding capacity
Can maintain moisture to levels below 50 ppm
Micron Filter Rating 3
Media & Wound Cellulose
Endcap Seals
Positive, deep penetrating seal toprevent oil from bypassing media.Made of PPE for superior chemicalresistance.
Gaskets and O-Rings
Buna-N standard; Viton® optional
Micron Rating 3
Holds up to 10 lb of dirt per element
Adsorbs up to 1 gallon of water per element
Interchangeable with all industry standard size Depth Filterelements. Call LE at (800) 537-7683 for cross-reference.
Depth Filter by Oil Viscosity
ISO VG 10-32
LEX-DMF-500
LEX-DMF-750
LEX-DMF-1006
ISO VG 32-68
LEX-DMF-500
LEX-DMF-750
LEX-DMF-1004
ISO VG 68-150
LEX-DMF-1006
ISO VG 150-460*
LEX-DMF-1008
Note
*Maximum recommended viscosity of 460
The size references the number of cubic inches of filter media contained in the element.For example, a size 1000 filter has 1,000 cubic inches of filter media.
Caution
Depth filter media should not be used for water removal purposes. Call LE at (800) 537-7683 for moreinformation or assistance in selecting the appropriate filter for your application.
