Fine Filters are offline oil filtration systems with integrated circulating pump for off-line installation. The filters are recognized around the world as highly efficient purification systems for applications involving hydraulic oil, lubrication oil, gear oil, quenching oil, phosphate esters and more.
Fine Filters are ideal for controlling oil contamination levels for particles, water and degradation products (oxidation resin/sludge, varnish). The Depth Filters have a filtration degree of 3 microns absolute and a very large dirt-holding capacity.
Fine Filters deliver measurable customer benefits: lower operation and maintenance costs, increased productivity, and maximum lifetime for system components, in-line filters and oil. The modular filter units are built and sized to specific customer requirements - whether the oil volume is 2 litres or 200,000 litres.

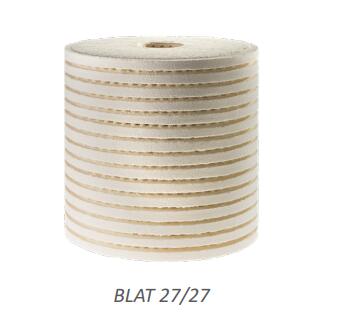

BLAT filter insert
Specially designed for filtration and separation of water from turbine oils
The BLAT Filter Insert is designed for continuous separation of water from lubricants with good demulsibility and a density lower than that of water.
The BLAT Filter Insert removes all four contamination types in one and the same process: particles, water, varnish, and acidity. The BLAT Filter Insert is used in Filter Seperator PTU series.
Used for maintenance of below oils:
Turbine oils
Hydraulic oils
Gear and lubricating oils up to ISO VG150
Diesel and gas oil
Contamination Capacities:
Based on field experience we have observed that the total Dirt Holding Capacity (DHC) is dependent on shape and density of particles and other variables within an oil system.
When saturated, the total weight of accumulated contamination depends on the application, the combination of contaminants, as well as the density of the captured contamination.
Your benefits with
Filter Inserts have the highest dirt holding capacity on the market due to special cellulose-based material. Furthermore, the unique construction of the bonded discs, creates a large filtration area resulting in reduced costs of ownership. The Filter Inserts are a modular design, which allows them to fit any applications and requirements.
The Filter Insert features:
Depth media of moulded cellulose
Highest Contamination Capacities (DHC)
100% natural cellulose fibres
Removal of contaminants, 4-in-1:
Particles:
Lifetime of both oil and component are increased considerably.
Oil degradation products:
Avoid sticking valves, lacquering, and varnish on metal surfaces.
Water:
Reduce the risk of micro-pitting, bacterial growth, sludge etc.
Acidity/TAN:
Reduce oil ageing and wear on equipment.
Our filtration equipment is used in a wide range of industries:
