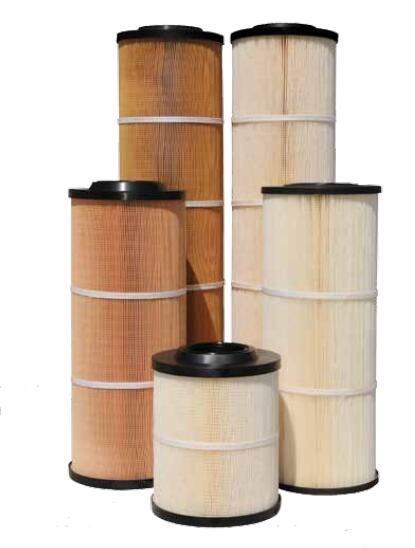

Harmsco HC/170-10HT Premium Hurricane High-Temp Cartridge provides longer filter runs for fewer change-outs resulting in a lower overall operating cost. The filter's Polyester-Plus pleated filter media is good up to 200°F and allows for higher flow rates and lower initial pressure drop which means there are fewer cartridge changes in applications with.
Specifications:
Pleated Polyester-Plus filter media
Pleated design provides longer filter life and increased particle removal
Aqueous and oil based fluid applications
Filter Dimensions: 30-3/4" x 7-3/4"
Max Temperature: 200°F
Recommended Flow Rate: 105 gpm
Micron rating: 10 Micron
Media Sqft: 170 sqft
Applications:
Hot Water Loops
Boiler Make-up Water
Petrochemical
Lubricating Oil
Cutting Fluids
Solvents
Distillate Fuel
Fuel Oil
Hydraulic Fluids
Bio Fuels
FEATURES:
• Pleated polypropylene filter media provides more surface area for longer filter life and increased particle removal.
• FDA listed materials for use in potable water and liquid food applications
• End caps, center tubes and media are thermally bonded as one integral component for added strength and to provide superior end sealing
• Full product line for standard, Big-Blue* and filter housings
About Pleated Filter Cartridges
• filter cartridges outperform wound, spun, melt blown, resin bonded and other ”depth” type filter elements because our cartridges are pleated to provide increased surface area and longer life. Lower pressure drop is another significant advantage, using Hurricane & WaterBetter pleated cartridges, which allows for increased flow rates and the use of smaller filter housings to reduce capital equipment costs. Further savings are provided because our 100% synthetic filter media is cleanable, five micron and up, to lower cartridge replacement costs.
• pleated filter cartridges outperform other pleated elements because our high performance filter media is systematically produced using 100% synthetic fibers, with no binders or additives to leave a residue, foam or contaminate. Our filter media is thicker than other products. For this reason, Premium Hurricane Harmsco-Free Cartridges
provide high flow capability, lower overall operating cost, longer filter runs with fewer change outs.
Pleated Filters Features
• Filter media is pleated for greater surface area
• Synthetic filter media is cellulose-free
• “Thicker” filter media has a greater capacity to capture and retain particles, compared to thin, more rigid media types, which have less void space for particle retention
• Increased contanminant removal
• All cartridge types and lengths are individually wrapped
Features to using Filters
• High flow capability; long life; reduced filtration costs, compared to wound and spun cartridges.
• No additives or binders, which may cause foaming.
• Increased dirt holding capacity; longer life; fewer cartridge replacements needed; and reduced filtration costs, compared to other pleated cartridge suppliers
• Increased particle removal efficiency; longer life; and reduced cost per gallon filtered
Lower pressure drop for higher flow rates
filter cartridges are pleated, so initial pressure drop is significantly less compared to depth cartridges, such a wound, spun, melt blown and resin bonded. As a result, higher flow rates are possible, reducing filter housing size requirements to lower capital equipment costs.
Washable & Reusable
pleasted filter cartridges are washable and reusable, five micron and up to reduce filtration costs. For best results, direct spray into pleats to dislodge sediment. Or, let dry and brush off filter cake from surface of the media
Applications
• Reverse Osmosis Pre-filtration
• Municipal Drinking Water Filtration
• Commercial/Residential Drinking Water Filtration Desalination
• Pre-filtration
• Industrial Water Filtration
• Cooling Tower Filtration
• Chill Water Loop Filtration
• Food & Beverage Filtration
• Marine / Aquatic Filtration
• Water Bottlers
