dust filtration, coalescers, separators - we can all produce!
No matter which brand - we can produce!
No matter which model - we can produce!
You have needs - please contact us.
|
Warm Tips:
We can supply most of the manufacturers of filter accessories, complete model, the goods quickly, quality assurance.
Limited space, not one by one show, if demand, please contact, thank you!
Air filtration, liquid filtration, gas filtration, hydraulic oil filtration, petroleum filtration,
dust filtration, coalescers, separators - we can all produce!
No matter which brand - we can produce!
No matter which model - we can produce!
You have needs - please contact us.

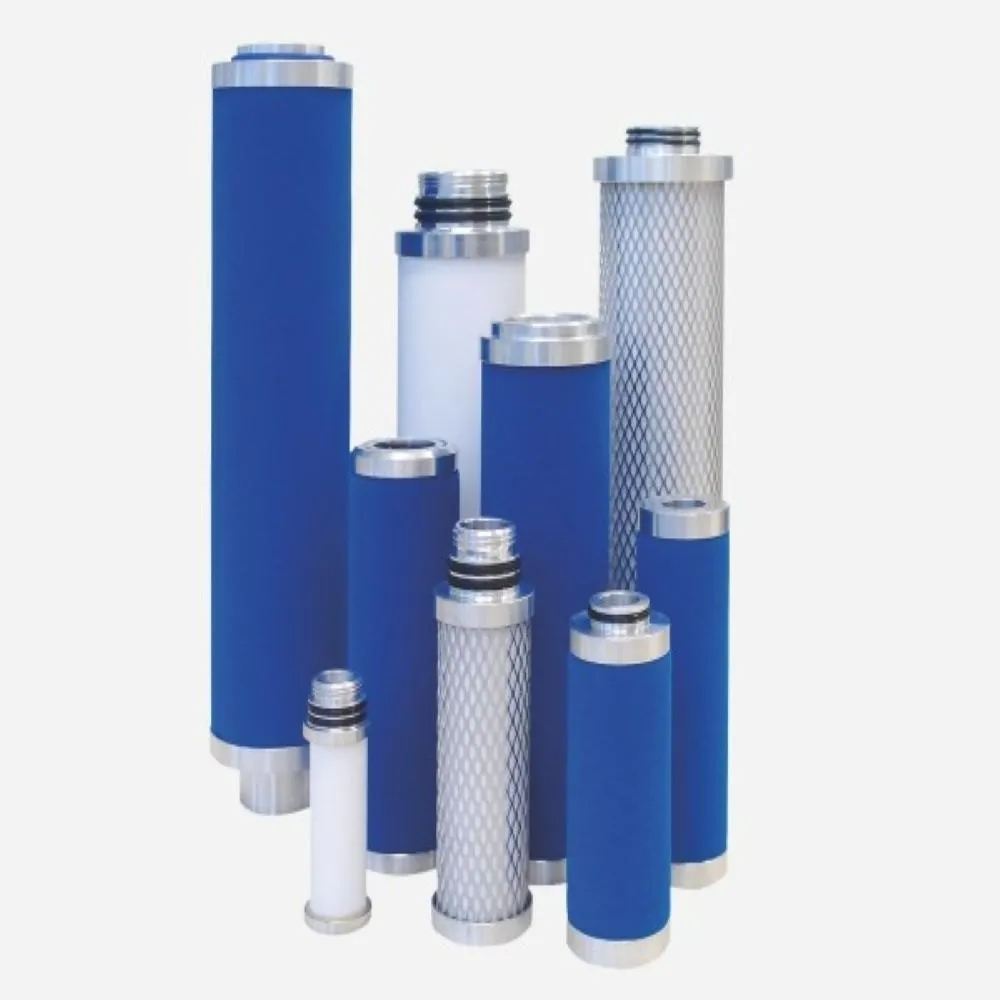

Compressed Air Filter Elements
The compressed air in compressor systems is sent to the air tank to be stored by passing through various filtration stages. The humidity in the air exposed to pressure in the rotor part of the compressor and then in the air tank can turn into water particles at a level that can damage the system. Unfiltered water particles cause corrosion, especially in systems where compressed air is used, resulting in a decrease in system efficiency and an increase in maintenance costs. In-Line filters with special filtration properties and low micron values produced by Filsan Filter are used in order to prevent damages that may occur from such undesirable situations, to increase system efficiency and to minimize maintenance costs that may arise from moisture.
Filter Element Types
AUX replacement filter elements which are the productions of wide research and special design, can be utilized in many areas of industry for different applications. These type of filter elements are installed in compressor dryers as filter units made of one or more filters in succession.
In the first and the second stages of filtration solid and liquid particules of 1 to 5 microns are retended successivelly at very low pressure losses.
The third stage elements are for high pressures and filters the particules of down to 0.01 micron. Another variety of these filter elements is the ones contain active carbon. By this way, it removes odor and oil vapor particles down to 0,003 ppm. These highly efficient elements are designed to be used in applications of medical and food precessing. Upon request of compressed air manufacturers, special designs or enhanced types of filter elements may also be manufactured.
Particulate compressed air filters are used to remove dust and particles from the air. The air stored in the air tank, before being sent to the dryer system, passes through a filter with a filtration capability of up to 3 microns as a pre-filter, and the pollutants that may be in the air are filtered before they reach the coalescing filters.
Coalescing filters are used to capture oil and/or moisture that is suspended in the compressed air in very tiny droplets. The air that comes from the pre/particle filters, free of pollutants that can reduce the life and efficiency of the coalescing filters, is filtered down to 1 micron in the coalescing inlet (Blue) filter and sent to the dryer system. By the special gases in the dryer system, the moisture in the air is condensed by cooling and it is filtered in the Output (Red) coalescing filter, which has a sensitive filtration feature up to 0.01 micron, and is brought to a humidity level that will not harm the system.
Activated carbon filters will remove odors and vapors. Filsan’s Activated carbon filters are; filters used to prevent gas molecules in the air drawn from outside in compressor systems and cause bad odor. Activated carbon filters are important in compressor systems in terms of ensuring that the odor in the dehumidified air or any gas molecule that may be harmful is given to the system in a purified manner after the in-line filters. These filters perform the filtration process as a result of the harmful gas molecules in the air sticking to the active carbon in the structure of the filters.
PR1060001 Atlas Copco DDp9
PR2091230 Donaldson MF30/50
PR1690760 Hankison E-9-36
PR1690750 Hankison E-9-32
PR1690740 Hankison E-9-28
PR1690730 Hankison E-9-24
PR1690720 Hankison E-9-20
PR2091235 Donaldson SMF02/05
PR1690710 Hankison E-9-16
PR1690610 Hankison E-1-54
PR1690600 Hankison E-1-52
PR1690590 Hankison E-1-48
PR1690580 Hankison E-1-44
PR1690570 Hankison E-1-40
PR1690560 Hankison E-1-32
PR1690700 Hankison E-9-12
PR1690550 Hankison E-1-28
PR2091236 Donaldson SMF03/05
PR2091250 Donaldson SMF03/10
PR2091360 Donaldson AK02/10
PR2091356 Donaldson AK03/05
PR2091355 Donaldson AK02/05
PR2091350 Donaldson SMF30/50
PR2091340 Donaldson SMF30/30
PR2091330 Donaldson SMF20/30
PR2091240 Donaldson SMF02/10
PR2091320 Donaldson SMF15/30
PR2091300 Donaldson SMF07/30
PR2091290 Donaldson SMF07/25
PR2091280 Donaldson SMF05/25
PR2091270 Donaldson SMF05/20
PR2091260 Donaldson SMF04/20
PR2091255 Donaldson SMF04/10
PR2091310 Donaldson SMF10/30
PR2091370 Donaldson AK03/10
PR1690530 Hankison E-1-24
PR1690510 Hankison E-1-16
PR2091200 Donaldson MF15/30
PR2091190 Donaldson MF10/30
PR2091180 Donaldson MF07/30
PR2091170 Donaldson MF07/25
PR2091160 Donaldson MF05/25
PR2091150 Donaldson MF05/20
PR2091210 Donaldson MF20/30
PR2091140 Donaldson MF04/20
PR2091130 Donaldson MF03/10
PR2091120 Donaldson MF02/10
PR2091116 Donaldson MF03/05
PR2091115 Donaldson MF02/05
PR2091110 Donaldson PE30/50 or SB30/50
PR2091100 Donaldson PE30/30 or SB30/30
PR2091135 Donaldson MF04/10
PR1690520 Hankison E-1-20
PR2091220 Donaldson MF30/30
PR1690200 Hankison E-7-52
PR1690500 Hankison E-1-12
PR1690410 Hankison E-5-54
PR1690400 Hankison E-5-52
PR1690390 Hankison E-5-48
PR1690380 Hankison E-5-44
PR1690370 Hankison E-5-40
PR1690190 Hankison E-7-48
PR1690360 Hankison E-5-36
PR1690340 Hankison E-5-28
PR1690330 Hankison E-5-24
PR1690320 Hankison E-5-20
PR1690310 Hankison E-5-16
PR1690300 Hankison E-5-12
PR1690210 Hankison E-7-54
PR1690350 Hankison E-5-32
PR2091090 Donaldson PE20/30 or SB20/30
PR2091375 Donaldson AK04/10
PR2091390 Donaldson AK05/20
PR2098070 Donaldson FF10/3
PR2098065 Donaldson FF7/3
PR2098060 Donaldson FF5/3
PR2098050 Donaldson FF5/2.5
PR2098040 Donaldson FF4/2.5
PR2098030 Donaldson FF4/1.5
PR2098075 Donaldson FF12/3
PR2098020 Donaldson FF3/1.5
PR2090230 Donaldson MF2/1.5
PR2090220 Donaldson MF3/1
PR2090210 Donaldson SMF30/5
PR2090190 Donaldson SMF30/3
PR2090180 Donaldson SMF20/3
PR2090170 Donaldson SMF15/3
PR2090240 Donaldson MF3/1.5
PR2090165 Donaldson SMF12/3
PR2098080 Donaldson FF15/3
PR2098100 Donaldson FF30/3
PR2098240 Donaldson FF20/30
PR2098230 Donaldson FF15/30
PR2098220 Donaldson FF10/30
PR2098210 Donaldson FF07/30
PR2098200 Donaldson FF07/25
PR2098190 Donaldson FF05/25
PR2098090 Donaldson FF20/3
PR2098180 Donaldson FF05/20
PR2098160 Donaldson FF04/10
Our filtration equipment is used in a wide range of industries:
Advanced production process:
| Contact us | john Fimler Filter WeChat: +8613632692595 Whatsapp:+8613632692595 E-mail:4798742@qq.com |
