dust filtration, coalescers, separators - we can all produce!
No matter which brand - we can produce!
No matter which model - we can produce!
You have needs - please contact us.
|
Warm Tips:
We can supply most of the manufacturers of filter accessories, complete model, the goods quickly, quality assurance.
Limited space, not one by one show, if demand, please contact, thank you!
Air filtration, liquid filtration, gas filtration, hydraulic oil filtration, petroleum filtration,
dust filtration, coalescers, separators - we can all produce!
No matter which brand - we can produce!
No matter which model - we can produce!
You have needs - please contact us.

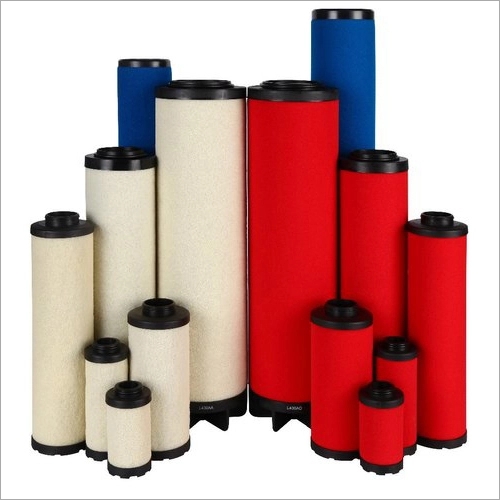

Compressed Air Filter Elements
The compressed air in compressor systems is sent to the air tank to be stored by passing through various filtration stages. The humidity in the air exposed to pressure in the rotor part of the compressor and then in the air tank can turn into water particles at a level that can damage the system. Unfiltered water particles cause corrosion, especially in systems where compressed air is used, resulting in a decrease in system efficiency and an increase in maintenance costs. In-Line filters with special filtration properties and low micron values produced by Filsan Filter are used in order to prevent damages that may occur from such undesirable situations, to increase system efficiency and to minimize maintenance costs that may arise from moisture.
Filter Element Types
AUX replacement filter elements which are the productions of wide research and special design, can be utilized in many areas of industry for different applications. These type of filter elements are installed in compressor dryers as filter units made of one or more filters in succession.
In the first and the second stages of filtration solid and liquid particules of 1 to 5 microns are retended successivelly at very low pressure losses.
The third stage elements are for high pressures and filters the particules of down to 0.01 micron. Another variety of these filter elements is the ones contain active carbon. By this way, it removes odor and oil vapor particles down to 0,003 ppm. These highly efficient elements are designed to be used in applications of medical and food precessing. Upon request of compressed air manufacturers, special designs or enhanced types of filter elements may also be manufactured.
Particulate compressed air filters are used to remove dust and particles from the air. The air stored in the air tank, before being sent to the dryer system, passes through a filter with a filtration capability of up to 3 microns as a pre-filter, and the pollutants that may be in the air are filtered before they reach the coalescing filters.
Coalescing filters are used to capture oil and/or moisture that is suspended in the compressed air in very tiny droplets. The air that comes from the pre/particle filters, free of pollutants that can reduce the life and efficiency of the coalescing filters, is filtered down to 1 micron in the coalescing inlet (Blue) filter and sent to the dryer system. By the special gases in the dryer system, the moisture in the air is condensed by cooling and it is filtered in the Output (Red) coalescing filter, which has a sensitive filtration feature up to 0.01 micron, and is brought to a humidity level that will not harm the system.
Activated carbon filters will remove odors and vapors. Filsan’s Activated carbon filters are; filters used to prevent gas molecules in the air drawn from outside in compressor systems and cause bad odor. Activated carbon filters are important in compressor systems in terms of ensuring that the odor in the dehumidified air or any gas molecule that may be harmful is given to the system in a purified manner after the in-line filters. These filters perform the filtration process as a result of the harmful gas molecules in the air sticking to the active carbon in the structure of the filters.
PR2098150 Donaldson FF03/10
PR2098140 Donaldson FF02/10
PR2098130 Donaldson FF03/05
PR2098120 Donaldson FF02/05
PR2098110 Donaldson FF30/5
PR2098170 Donaldson FF04/20
PR2091380 Donaldson AK04/20
PR2090160 Donaldson SMF10/3
PR2090150 Donaldson SMF5/3
PR1690800 Hankison E-9-52
PR1690790 Hankison E-9-48
PR1690780 Hankison E-9-44
PR1690770 Hankison E-9-40
PR2098010 Donaldson FF2/1.5
PR2098000 Donaldson FF3/1
PR1690810 Hankison E-9-54
PR2091470 Donaldson AK30/50
PR2091450 Donaldson AK20/30
PR2091440 Donaldson AK15/30
PR2091430 Donaldson AK10/30
PR2091420 Donaldson AK07/30
PR2091410 Donaldson AK07/25
PR2091400 Donaldson AK05/25
PR2091460 Donaldson AK30/30
PR2090155 Donaldson SMF7/3
PR1690900 Hankison E-3-12
PR1690920 Hankison E-3-20
PR2090140 Donaldson SMF5/2.5
PR2090130 Donaldson SMF4/2.5
PR2090120 Donaldson SMF4/1.5
PR2090115 Donaldson SMF3/1.5
PR2090100 Donaldson SMF3/1
PR1691010 Hankison E-3-54
PR1690910 Hankison E-3-16
PR1691000 Hankison E-3-52
PR1690980 Hankison E-3-44
PR1690970 Hankison E-3-40
PR1690960 Hankison E-3-36
PR1690950 Hankison E-3-32
PR1690940 Hankison E-3-28
PR1690930 Hankison E-3-24
PR1690990 Hankison E-3-48
PR2091080 Donaldson PE15/30 or SB15/30
PR2091070 Donaldson PE10/30 or SB10/30
PR2091060 Donaldson PE07/30 or SB07/30
PR1060051 Atlas Copco PD780F
PR1060050 Atlas Copco DD780F
PR1060049 Atlas Copco DDp780F
PR1060048 Atlas Copco QD520F
PR1060047 Atlas Copco PD520F
PR1060046 Atlas Copco DD520F
PR1060052 Atlas Copco QD780F
PR1060045 Atlas Copco DDp520F
PR1060043 Atlas Copco PD520
PR1060042 Atlas Copco DD520
PR1060041 Atlas Copco DDp520
PR1060040 Atlas Copco QD390
PR1060039 Atlas Copco PD390
PR1060038 Atlas Copco DD390
PR1060044 Atlas Copco QD520
PR1060037 Atlas Copco DDp390
PR1240099 Zander 1030V
PR1240110 Zander 1070V
PR2090290 Donaldson MF10/3
PR2090285 Donaldson MF7/3
PR2090280 Donaldson MF5/3
PR2090270 Donaldson MF5/2.5
PR2090260 Donaldson MF4/2.5
PR2090250 Donaldson MF4/1.5
PR1240100 Zander 1050V
PR1240189 Zander 5060V
PR1240170 Zander 3050V
PR1240160 Zander 2050V
PR1240150 Zander 2030V
PR1240140 Zander 2020V
PR1240130 Zander 2010V
PR1240120 Zander 1140V
PR1240180 Zander 3075V
PR2090295 Donaldson MF12/3
PR1060036 Atlas Copco QD260
PR1060034 Atlas Copco DD260
PR1060015 Atlas Copco PD44
PR1060014 Atlas Copco DD44
PR1060013 Atlas Copco DDp44
PR1060012 Atlas Copco QD32
PR1060011 Atlas Copco PD32
PR1060010 Atlas Copco DD32
PR1060016 Atlas Copco QD44
PR1060009 Atlas Copco DDp32
PR1060007 Atlas Copco PD17
PR1060006 Atlas Copco DD17
PR1060005 Atlas Copco DDp17
PR1060004 Atlas Copco QD9
PR1060003 Atlas Copco PD9
PR1060002 Atlas Copco DD9
PR1060008 Atlas Copco QD17
PR1060035 Atlas Copco PD260
PR1060017 Atlas Copco DDp60
PR1060019 Atlas Copco PD60
PR1060033 Atlas Copco DDp260
