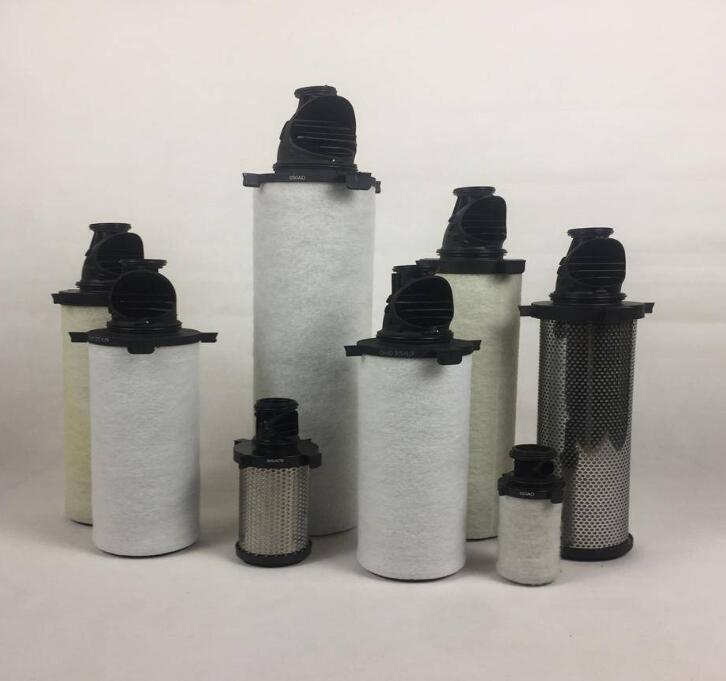

Compressed Air Filter Elements
The compressed air in compressor systems is sent to the air tank to be stored by passing through various filtration stages. The humidity in the air exposed to pressure in the rotor part of the compressor and then in the air tank can turn into water particles at a level that can damage the system. Unfiltered water particles cause corrosion, especially in systems where compressed air is used, resulting in a decrease in system efficiency and an increase in maintenance costs. In-Line filters with special filtration properties and low micron values produced by Filsan Filter are used in order to prevent damages that may occur from such undesirable situations, to increase system efficiency and to minimize maintenance costs that may arise from moisture.
Filter Element Types
AUX replacement filter elements which are the productions of wide research and special design, can be utilized in many areas of industry for different applications. These type of filter elements are installed in compressor dryers as filter units made of one or more filters in succession.
In the first and the second stages of filtration solid and liquid particules of 1 to 5 microns are retended successivelly at very low pressure losses.
The third stage elements are for high pressures and filters the particules of down to 0.01 micron. Another variety of these filter elements is the ones contain active carbon. By this way, it removes odor and oil vapor particles down to 0,003 ppm. These highly efficient elements are designed to be used in applications of medical and food precessing. Upon request of compressed air manufacturers, special designs or enhanced types of filter elements may also be manufactured.
Particulate compressed air filters are used to remove dust and particles from the air. The air stored in the air tank, before being sent to the dryer system, passes through a filter with a filtration capability of up to 3 microns as a pre-filter, and the pollutants that may be in the air are filtered before they reach the coalescing filters.
Coalescing filters are used to capture oil and/or moisture that is suspended in the compressed air in very tiny droplets. The air that comes from the pre/particle filters, free of pollutants that can reduce the life and efficiency of the coalescing filters, is filtered down to 1 micron in the coalescing inlet (Blue) filter and sent to the dryer system. By the special gases in the dryer system, the moisture in the air is condensed by cooling and it is filtered in the Output (Red) coalescing filter, which has a sensitive filtration feature up to 0.01 micron, and is brought to a humidity level that will not harm the system.
Activated carbon filters will remove odors and vapors. Filsan’s Activated carbon filters are; filters used to prevent gas molecules in the air drawn from outside in compressor systems and cause bad odor. Activated carbon filters are important in compressor systems in terms of ensuring that the odor in the dehumidified air or any gas molecule that may be harmful is given to the system in a purified manner after the in-line filters. These filters perform the filtration process as a result of the harmful gas molecules in the air sticking to the active carbon in the structure of the filters.
005ACS ACS Oil Vapour Removal OIL-X EVOLUTION 005 Housings
010ACS ACS Oil Vapour Removal OIL-X EVOLUTION 010 Housings
015ACS ACS Oil Vapour Removal OIL-X EVOLUTION 015 Housings
020ACS ACS Oil Vapour Removal OIL-X EVOLUTION 020 Housings
025ACS ACS Oil Vapour Removal OIL-X EVOLUTION 025 Housings
030ACS ACS Oil Vapour Removal OIL-X EVOLUTION 030 Housings
035ACS ACS Oil Vapour Removal OIL-X EVOLUTION 035 Housings
040ACS ACS Oil Vapour Removal OIL-X EVOLUTION 040 Housings
045ACS ACS Oil Vapour Removal OIL-X EVOLUTION 045 Housings
050ACS ACS Oil Vapour Removal OIL-X EVOLUTION 050 Housings
055ACS ACS Oil Vapour Removal OIL-X EVOLUTION 055 Housings
005AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 005 Housings
010AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 010 Housings
015AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 015 Housings
020AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 020 Housings
025AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 025 Housings
030AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 030 Housings
035AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 035 Housings
040AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 040 Housings
045AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 045 Housings
050AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 050 Housings
055AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 055 Housings
005AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 005 Housings
010AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 010 Housings
015AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 015 Housings
020AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 020 Housings
025AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 025 Housings
030AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 030 Housings
035AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 035 Housings
040AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 040 Housings
045AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 045 Housings
050AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 050 Housings
055AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 055 Housings
060AO AO General Purpose Coalescing and Dry Particulate OIL-X EVOLUTION 060 Housings
060AA AA High Efficiency Coalescing and Dry Particulate OIL-X EVOLUTION 060 Housings
060ACS ACS Oil Vapour Removal OIL-X EVOLUTION 060 Housings
010AC AC Oil Vapour Removal OIL-X EVOLUTION AC010 Housings
015AC AC Oil Vapour Removal OIL-X EVOLUTION AC015 Housings
020AC AC Oil Vapour Removal OIL-X EVOLUTION AC020 Housings
025DAC AC Oil Vapour Removal OIL-X EVOLUTION AC025D Housings
025EAC AC Oil Vapour Removal OIL-X EVOLUTION AC025E Housings
030AC AC Oil Vapour Removal OIL-X EVOLUTION AC030 Housings
010AA-ATEX AA General Purpose Coalescing and Dry Particulate - ATEX OIL-X EVOLUTION 010 Housings
015AA-ATEX AA General Purpose Coalescing and Dry Particulate - ATEX OIL-X EVOLUTION 0150 Housings
020AA-ATEX AA General Purpose Coalescing and Dry Particulate - ATEX
020AO-ATEX AO General Purpose Coalescing and Dry Particulate - ATEX OIL-X EVOLUTION 020 Housings
025AA-ATEX AA General Purpose Coalescing and Dry Particulate - ATEX OIL-X EVOLUTION 025 Housings
025AO-ATEX AO General Purpose Coalescing and Dry Particulate - ATEX OIL-X EVOLUTION 025 Housings
030AA-ATEX AA General Purpose Coalescing and Dry Particulate - ATEX OIL-X EVOLUTION 030 Housings
030AO-ATEX AO General Purpose Coalescing and Dry Particulate - ATEX OIL-X EVOLUTION 030 Housings
050AA-ATEX AA General Purpose Coalescing and Dry Particulate - ATEX OIL-X EVOLUTION 050 Housings
050AO-ATEX AO General Purpose Coalescing and Dry Particulate - ATEX OIL-X EVOLUTION 050 Housings
055AA-ATEX AA General Purpose Coalescing and Dry Particulate - ATEX OIL-X EVOLUTION 050 Housings
055AO-ATEX AO General Purpose Coalescing and Dry Particulate - ATEX OIL-X EVOLUTION 055 Housings
