Compressed Air Filter Elements
The compressed air in compressor systems is sent to the air tank to be stored by passing through various filtration stages. The humidity in the air exposed to pressure in the rotor part of the compressor and then in the air tank can turn into water particles at a level that can damage the system. Unfiltered water particles cause corrosion, especially in systems where compressed air is used, resulting in a decrease in system efficiency and an increase in maintenance costs. In-Line filters with special filtration properties and low micron values produced by Filsan Filter are used in order to prevent damages that may occur from such undesirable situations, to increase system efficiency and to minimize maintenance costs that may arise from moisture.
Filter Element Types
AUX replacement filter elements which are the productions of wide research and special design, can be utilized in many areas of industry for different applications. These type of filter elements are installed in compressor dryers as filter units made of one or more filters in succession.
In the first and the second stages of filtration solid and liquid particules of 1 to 5 microns are retended successivelly at very low pressure losses.
The third stage elements are for high pressures and filters the particules of down to 0.01 micron. Another variety of these filter elements is the ones contain active carbon. By this way, it removes odor and oil vapor particles down to 0,003 ppm. These highly efficient elements are designed to be used in applications of medical and food precessing. Upon request of compressed air manufacturers, special designs or enhanced types of filter elements may also be manufactured.
Particulate compressed air filters are used to remove dust and particles from the air. The air stored in the air tank, before being sent to the dryer system, passes through a filter with a filtration capability of up to 3 microns as a pre-filter, and the pollutants that may be in the air are filtered before they reach the coalescing filters.

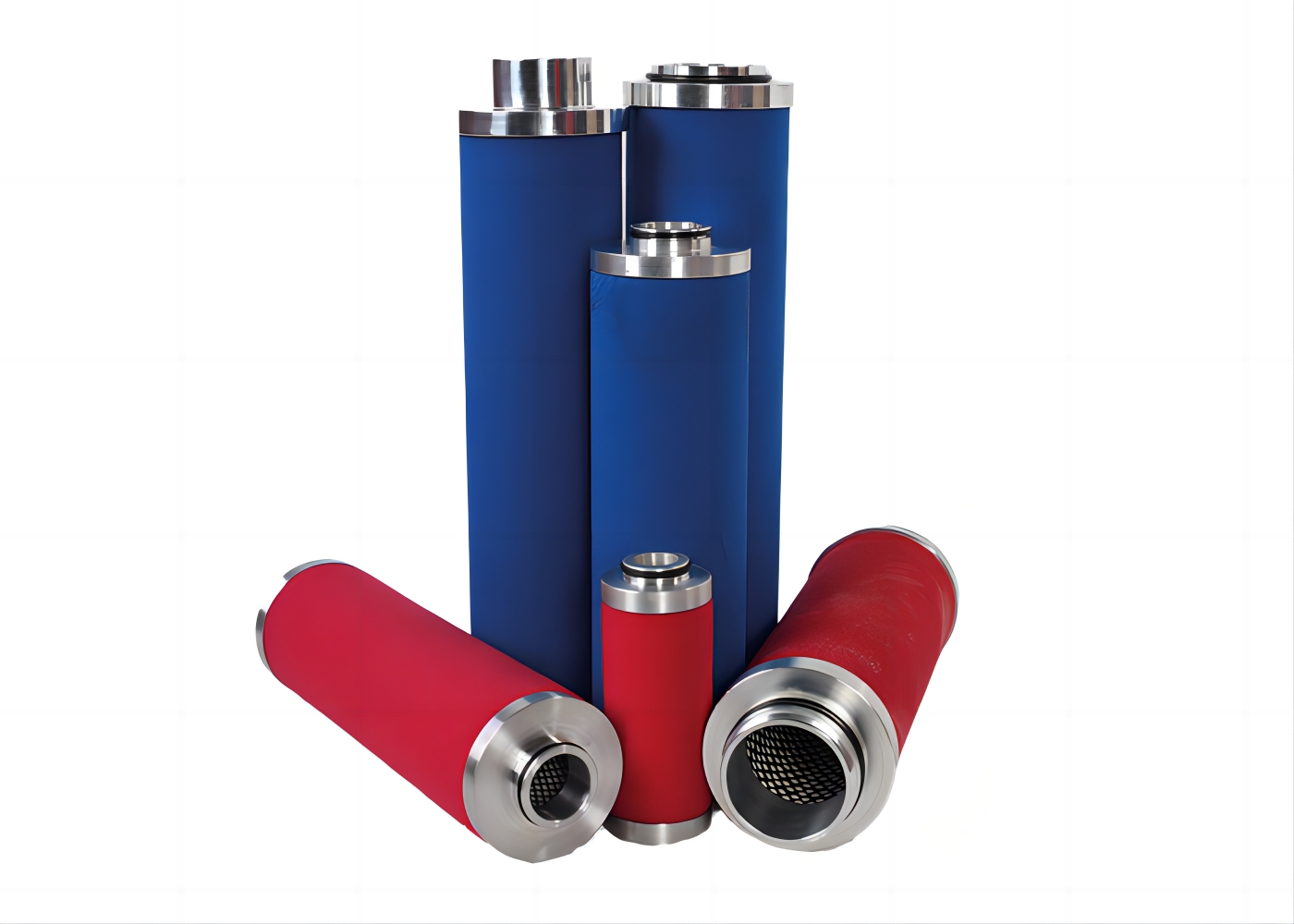

Coalescing filters are used to capture oil and/or moisture that is suspended in the compressed air in very tiny droplets. The air that comes from the pre/particle filters, free of pollutants that can reduce the life and efficiency of the coalescing filters, is filtered down to 1 micron in the coalescing inlet (Blue) filter and sent to the dryer system. By the special gases in the dryer system, the moisture in the air is condensed by cooling and it is filtered in the Output (Red) coalescing filter, which has a sensitive filtration feature up to 0.01 micron, and is brought to a humidity level that will not harm the system.
Activated carbon filters will remove odors and vapors. Filsan’s Activated carbon filters are; filters used to prevent gas molecules in the air drawn from outside in compressor systems and cause bad odor. Activated carbon filters are important in compressor systems in terms of ensuring that the odor in the dehumidified air or any gas molecule that may be harmful is given to the system in a purified manner after the in-line filters. These filters perform the filtration process as a result of the harmful gas molecules in the air sticking to the active carbon in the structure of the filters.
2010XP/S1 G9_H/CNG Coalescing
2020VPL12/CNG G11_H/CNG Coalescing
2020VPL25 G11_H/CNG Coalescing
2020XP/CNG G11_H/CNG Coalescing
2020Z-GESCHAE-FE G11_H/CNG Coalescing
2020ZP/CNG G11_H/CNG Coalescing
2030V/CNG G12_H/CNG Coalescing
2030XP/CNG G12_H/CNG Coalescing
2030XP4/LV G12_H/CNG Coalescing
2030ZP/CNG G12_H/CNG Coalescing
2050XP/CNG G13_H/CNG Coalescing
2050ZP/CNG G13_H/CNG Coalescing
3050XP/CNG G13_H/CNG Coalescing
3050XP4/CNG G13_H/CNG Coalescing
3075VPL25NX/WH G17_H/CNG Coalescing
3075VVA/S1WH G17_H/CNG Coalescing
3075X4HTCR/VWH G17_H/CNG Coalescing
3075X4HTNX/WH G17_H/CNG Coalescing
3075XP/CNG G17_H/CNG Coalescing
3075XP4/CNG G17_H/CNG Coalescing
3075XP4/LV G17_H/CNG Coalescing
3075XPVA/S1WH G17_H/CNG Coalescing
3075ZP/CNG G17_H/CNG Coalescing
5075XP/CNG G17_H/CNG Coalescing
TA30C TGA 102 Coalescing (Down to 1 micron)
TA30CF/O2V TGA 102 Coalescing (Down to 0.01 micron)
TA30CFE TGA 102 Coalescing (Down to 1 micron) ATEX
TA50A TG(A/H) 104 Oil Vapour Reduction
TA50AE TG(A/H) 104 Oil Vapour Reduction (ATEX)
TA50C TG(A/H) 104 Coalescing (Down to 1 micron)
TA50C/O2 TG(A/H) 104 Coalescing (Down to 1 micron)
TA50CE TG(A/H) 104 Coalescing (Down to 1 micron) ATEX
TA50CF TG(A/H) 104 Coalescing (Down to 0.01 micron)
TA50CF/O2 TG(A/H) 104 Coalescing (Down to 0.01 micron)
TA50CFE TG(A/H) 104 Coalescing (Down to 0.01 micron) ATEX
TA50CHTCR TG(A/H) 104 High Temperature Coalescing (Down to 1 micron)
TA50CSF TG(A/H) 104 Coalescing (Down to 0.01 micron)
TA50CSFE TG(A/H) 104 Coalescing (Down to 0.01 micron) ATEX
TA70C TG(A/H) 106 Coalescing (Down to 1 micron)
TA70C/O2 TG(A/H) 106 Coalescing (Down to 1 micron)
TA70CE TG(A/H) 106 Coalescing (Down to 1 micron) ATEX
TA70CF TG(A/H) 106 Coalescing (Down to 0.01 micron)
TA70CF/O2V TG(A/H) 106 Coalescing (Down to 0.01 micron)
TA70CFE TG(A/H) 106 Coalescing (Down to 0.01 micron) ATEX
TA70CFHTCR TG(A/H) 106 High Temperature Coalescing (Down to 0.01 micron)
TA70CHTCR TG(A/H) 106 High Temperature Coalescing (Down to 1 micron)
TA70P TG(A/H) 106 Particulate (Down to 3 micron) ATEX
TA90A TG(A/H) 108 Oil Vapour Reduction
TA90AE TG(A/H) 108 Oil Vapour Reduction (ATEX)
TA90C TG(A/H) 108 Coalescing (Down to 1 micron)
TA90C/O2 TG(A/H) 108 Coalescing (Down to 1 micron)
TA90CE TG(A/H) 108 Coalescing (Down to 1 micron) ATEX
TA90CF TG(A/H) 108 Coalescing (Down to 0.01 micron)
TA90CF/O2 TG(A/H) 108 Coalescing (Down to 0.01 micron)
TA90CFE TG(A/H) 108 Coalescing (Down to 0.01 micron) ATEX
TA90CHTCR/C TG(A/H) 108 Coalescing
TA90CSFE TG(A/H) 108 Coalescing (Down to 0.01 micron) ATEX
TA90CSFHTCR TG(A/H) 108 High Temperature Coalescing (Down to 0.01 micron)
TB10C TG(A/H) 110 Coalescing (Down to 1 micron)
TB10CF/O2V TG(A/H) 110 Coalescing (Down to 0.01 micron)
TB10CFE TG(A/H) 110 Coalescing (Down to 0.01 micron) ATEX
TB20A TG(A/H) 112 Oil Vapour Reduction
TB20C TG(A/H) 112 Coalescing (Down to 1 micron)
TB20C/O2 TG(A/H) 112 Coalescing (Down to 1 micron)
TB20CE TG(A/H) 112 Coalescing (Down to 1 micron) ATEX
TB20CF TG(A/H) 112 Coalescing (Down to 0.01 micron)
TB20CF/O2V TG(A/H) 112 Coalescing (Down to 0.01 micron)
TB20CFE TG(A/H) 112 Coalescing (Down to 0.01 micron) ATEX
TB20CFHTCR TG(A/H) 112 High Temperature Coalescing (Down to 0.01 micron)
TB20CHTCR TG(A/H) 112 High Temperature Coalescing (Down to 1 micron)
TB20CSFE TG(A/H) 112 High Temperature Coalescing (Down to 0.01 micron) ATEX
TB20CSFHTCR TG(A/H) 112 High Temperature Coalescing (Down to 0.01 micron)
TB20PL12 TG(A/H) 112 Coalescing
TB30AE TG(A/H) 114 Oil Vapour Reduction (ATEX)
TB30C TG(A/H) 114 Coalescing (Down to 1 micron)
TB30CF TG(A/H) 114 Coalescing (Down to 0.01 micron)
TB30CFE TG(A/H) 114 Coalescing (Down to 0.01 micron) ATEX
TB30CFHTCR TG(A/H) 114 High Temperature Coalescing (Down to 0.01 micron)
TB30CSF TG(A/H) 114 Coalescing (Down to 0.01 micron)
TB30CSFE TG(A/H) 114 Coalescing (Down to 0.01 micron) ATEX
TB30PE TG(A/H) 114 Particulate (Down to 3 micron) ATEX
TB50C TG(A/H) 116-118 / TGS 214 Coalescing (Down to 1 micron)
TB50CF TG(A/H) 116-118 / TGS 214 Coalescing (Down to 0.01 micron)
TB50CFE TG(A/H) 116-118 / TGS 214 Coalescing (Down to 0.01 micron) ATEX
TB50CHTCR TG(A/H) 116-118 / TGS 214 High Temperature Coalescing (Down to 1 micron)
TB50CHTCR/D TG(A/H) 116-118 / TGS 214 High Temperature Coalescing (Down to 1 micron)
TB50CSFE TG(A/H) 116-118 / TGS 214 Coalescing (Down to 0.01 micron) ATEX
TC50AE TG(A/H) 116-118 / TGS 214 Oil Vapour Reduction (ATEX)
TC50C TG(A/H) 116-118 / TGS 214 Coalescing (Down to 1 micron)
TC50CE TG(A/H) 116-118 / TGS 214 Coalescing (Down to 1 micron) ATEX
TC50CF TG(A/H) 116-118 / TGS 214 Coalescing (Down to 0.01 micron)
TC50CFE TG(A/H) 116-118 / TGS 214 Coalescing (Down to 0.01 micron) ATEX
TC50CHTCR TG(A/H) 116-118 / TGS 214 High Temperature Coalescing (Down to 12 micron)
TC50CSFE TG(A/H) 116-118 / TGS 214 Coalescing (Down to 0.01 micron) ATEX
TC50PL25NX TG(A/H) 116-118 / TGS 214 High Temperature Particulate (Down to 1 micron)
TC75CE TGS 216-232 Coalescing (Down to 1 micron) ATEX
TC75CF/O2 TGS 216-232 Coalescing (Down to 0.01 micron)
TC75CFE TGS 216-232 Coalescing (Down to 0.01 micron) ATEX
TC75CFHTCR TGS 216-232 High Temperature Coalescing (Down to 0.01 micron)
TC75CFHTCR/C TGS 216-232 High Temperature Coalescing (Down to 0.01 micron)
