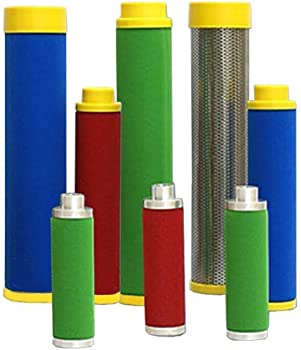

Compressed Air Filter Elements
The compressed air in compressor systems is sent to the air tank to be stored by passing through various filtration stages. The humidity in the air exposed to pressure in the rotor part of the compressor and then in the air tank can turn into water particles at a level that can damage the system. Unfiltered water particles cause corrosion, especially in systems where compressed air is used, resulting in a decrease in system efficiency and an increase in maintenance costs. In-Line filters with special filtration properties and low micron values produced by Filsan Filter are used in order to prevent damages that may occur from such undesirable situations, to increase system efficiency and to minimize maintenance costs that may arise from moisture.
Filter Element Types
AUX replacement filter elements which are the productions of wide research and special design, can be utilized in many areas of industry for different applications. These type of filter elements are installed in compressor dryers as filter units made of one or more filters in succession.
In the first and the second stages of filtration solid and liquid particules of 1 to 5 microns are retended successivelly at very low pressure losses.
The third stage elements are for high pressures and filters the particules of down to 0.01 micron. Another variety of these filter elements is the ones contain active carbon. By this way, it removes odor and oil vapor particles down to 0,003 ppm. These highly efficient elements are designed to be used in applications of medical and food precessing. Upon request of compressed air manufacturers, special designs or enhanced types of filter elements may also be manufactured.
Particulate compressed air filters are used to remove dust and particles from the air. The air stored in the air tank, before being sent to the dryer system, passes through a filter with a filtration capability of up to 3 microns as a pre-filter, and the pollutants that may be in the air are filtered before they reach the coalescing filters.
Coalescing filters are used to capture oil and/or moisture that is suspended in the compressed air in very tiny droplets. The air that comes from the pre/particle filters, free of pollutants that can reduce the life and efficiency of the coalescing filters, is filtered down to 1 micron in the coalescing inlet (Blue) filter and sent to the dryer system. By the special gases in the dryer system, the moisture in the air is condensed by cooling and it is filtered in the Output (Red) coalescing filter, which has a sensitive filtration feature up to 0.01 micron, and is brought to a humidity level that will not harm the system.
Activated carbon filters will remove odors and vapors. Filsan’s Activated carbon filters are; filters used to prevent gas molecules in the air drawn from outside in compressor systems and cause bad odor. Activated carbon filters are important in compressor systems in terms of ensuring that the odor in the dehumidified air or any gas molecule that may be harmful is given to the system in a purified manner after the in-line filters. These filters perform the filtration process as a result of the harmful gas molecules in the air sticking to the active carbon in the structure of the filters.
TC75CHTCR TGS 216-232 High Temperature Coalescing (Down to 1 micron)
TC75CHTCR/C TGS 216-232 High Temperature Coalescing (Down to 1 micron)
TC75CSFE TGS 216-232 Coalescing (Down to 0.01 micron) ATEX
TC75CSFHTCR TGS 216-232 High Temperature Coalescing (Down to 0.01 micron)
TC75CSFHTNX TGS 216-232 High Temperature Coalescing (Down to 0.01 micron)
TC75PE TGS 216-232 Particulate (Down to 3 micron) ATEX
TC75PL25 TGS 216-232 High Temperature Particulate (Down to 25 micron)
TD60CE TGS 216-232 Coalescing (Down to 1 micron) ATEX
TD60CFE TGS 216-232 Coalescing (Down to 0.01 micron) ATEX
TD60CSFE TGS 216-232 Coalescing (Down to 0.01 micron) ATEX
TD75AE TGS 216-232 Oil Vapour Reduction (ATEX)
TD75C TGS 216-232 Coalescing (Down to 1 micron)
TD75CE TGS 216-232 Coalescing (Down to 1 micron) ATEX
TD75CF TGS 216-232 Coalescing (Down to 0.01 micron)
TD75CFE TGS 216-232 Coalescing (Down to 0.01 micron) ATEX
TD75CFHTCR TGS 216-232 High Temperature Coalescing (Down to 0.01 micron)
TD75CHTCR TGS 216-232 High Temperature Coalescing (Down to 1 micron)
TD75CSFE TGS 216-232 Coalescing (Down to 0.01 micron) ATEX
TE09A TGE 308 Oil Vapour Reduction
TE09C TGE 308 Coalescing (Down to 1 micron)
TE09CF TGE 308 Coalescing (Down to 0.01 micron)
TE09CSF TGE 308 Coalescing (Down to 0.01 micron)
TE13A TGE 314 Oil Vapour Reduction
TE13C TGE 314 Coalescing (Down to 1 micron)
TE13CF TGE 314 Coalescing (Down to 0.01 micron)
TE14A TGE 316 Oil Vapour Reduction
TE14C TGE 316 Coalescing (Down to 1 micron)
TE14CF TGE 316 Coalescing (Down to 0.01 micron)
TE14P TGE 316 Particulate (Down to 3 micron)
TE18A TGE 320 Oil Vapour Reduction
TE18C TGE 320 Coalescing (Down to 1 micron)
TE18CF TGE 320 Coalescing (Down to 0.01 micron)
TE18CFHTCR TGE 320 High Temperature Coalescing (Down to 0.01 micron)
TE18CSF TGE 320 Coalescing (Down to 0.01 micron)
TE19C/D TGE 324 Coalescing
V13T - Coalescing
VPL25NX-14T - Coalescing
XP09T - Coalescing
XP13T - Coalescing
XP14T - Coalescing
XP18T - Coalescing
XP18T/LV - Coalescing
XP19T - Coalescing
ZNX09T - Coalescing
ZP09T - Coalescing
ZP13T - Coalescing
ZP14T - Coalescing
ZP18T - Coalescing
ZP18T/LV - Coalescing
ZP19T - Coalescing
TA90PE TGA 108 Particulate (Down to 3 micron) ATEX
TB10A TGA 110 Oil Vapour Reduction
TB10CE TGA 110 Coalescing (Down to 1 micron) ATEX
TB10CF TGA 110 Coalescing (Down to 0.01 micron)
ZP14T/LV - Coalescing
