Fluorocarbon Borosilicate Glass Microfiber Element DIF-MNxx1/8


FEATURES

  • Completely Disposable

  • Blue Transparent Nylon & Virgin Kynar Body

  • Four Sizes Available

  • Five Grades of Filtration

  • Two or Three Port Design

  • Filter Gases & Liquids

APPLICATIONS

  • HVAC Protection

  • Analyzer & Sensor Protection

  • Low Cost Scrubbers

  • Last Chance Air Purifier

  • Zero Air Gas Calibration

Our Disposable In-Line Filters consist of permanently welded housings with encapsulated filter elements. This makes them ideal for portable analyzers and other analysis systems requiring a robust, easily replaceable filter. A choice of body materials makes them suitable for a wide range of chemical environments.

The economical DIF Series offers all the advantages of a microfiber filter element for high efficiency gas and liquid filtration, with the convenience of complete disposability. We have the ability to insert other filter media, such as PTFE or Stainless Steel Screens for course filtration.

A variety of barb/connection options are readily available from inventory. Keep in mind custom product can easily be built to order, regardless of quantity.

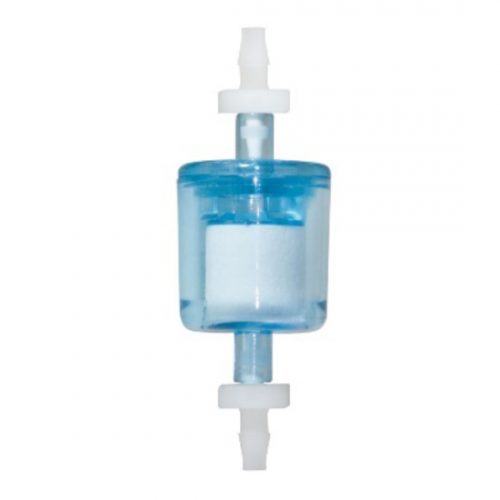

Miniature OEM Size with 1/8″ Straight Barb (DIF-MNxx1/8″)

Our mini DIF was designed specifically as a final last chance filter for critical equipment with a small footprint and 1/8”ID tubing. They are ideally used for HVAC/Pneumatic temperature control protection.
Standard: DIF-MN50-1/8” (99.99% @ 0.01 Micron) – Other Grades Available: 30, 40, 60, 70, 80

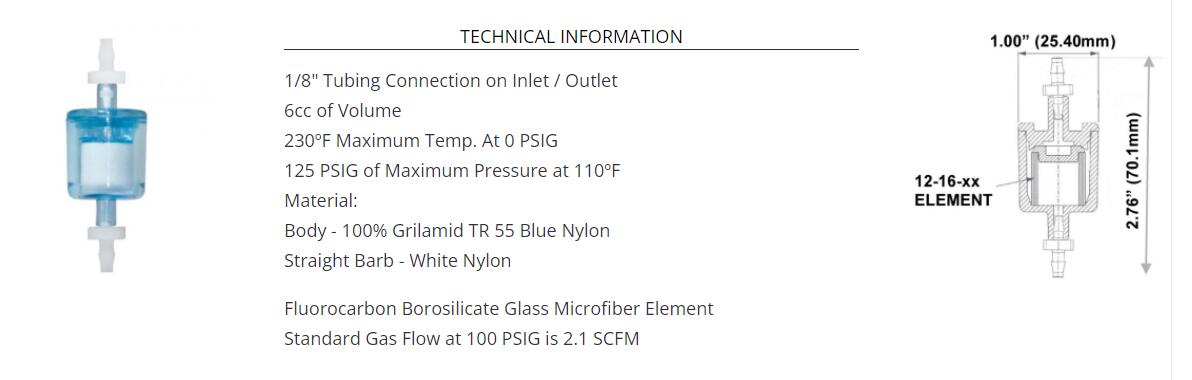

  • 1/8" Tubing Connection on Inlet / Outlet

  • 6cc of Volume

  • 230ºF Maximum Temp. At 0 PSIG

  • 125 PSIG of Maximum Pressure at 110ºF

  • Material:

  • Body - 100% Grilamid TR 55 Blue Nylon

  • Straight Barb - White Nylon

  • Fluorocarbon Borosilicate Glass Microfiber Element

  • Standard Gas Flow at 100 PSIG is 2.1 SCFM
