Poly-Pleat Series Filter Cartridges

• Filter Type: Pleated Filter Cartridges

• Filter media: Synthetic Media - cellulose-free filter media for water filtration applications

• Used For: Sediment Filtration and removing harmful organisms

• Used With Housings: Designed for Filter Housings That Utilize 2-1/2”, 2-3/4”, 4-1/2” and 7-3/4” O.D. High Flow Cartridges.

• Length: 20"

• Outside Diameter: 7-3/4"

• Micron Rating: 1 Micron Absolute

• Substantially removes: Cryptosporidium, Giardia cysts, Harmful organisms, Sediment, Silt and Turbidity

Silt Turbidity

• Media Sqft: 20 sqft

• Recommended Flow Rate: 10 GPM

• Center tubes: PVC

• End caps: Pliable PVC with sealing surface built-in

• Used For: Sediment Filtration

• Maximum Temperature: 140°F

• Maximum Pressure: 40 PSID

FEATURES:

• Absolute rated one micron filter media removes cyst- sized particles for safe, cyst-free drinking water.

• Pleated polypropylene filter media provides more surface area for longer filter life and increased particle removal.

• FDA listed materials for use in potable water and liquid food applications

• End caps, center tubes and media are thermally bonded as one integral component for added strength and to provide superior end sealing

• Full product line for standard, Big-Blue* and filter housings

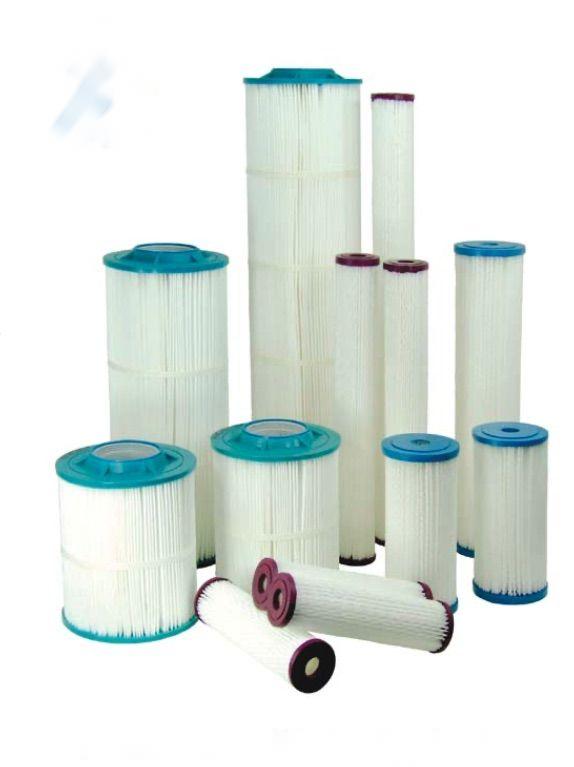

About Pleated Filter Cartridges

• Filter cartridges outperform wound, spun, melt blown, resin bonded and other ”depth” type filter elements because our cartridges are pleated to provide increased surface area and longer life. Lower pressure drop is another significant advantage, using Harmsco Hurricane & WaterBetter pleated cartridges, which allows for increased flow rates and the use of smaller filter housings to reduce capital equipment costs. Further savings are provided because our 100% synthetic filter media is cleanable, five micron and up, to lower cartridge replacement costs.

• Pleated filter cartridges outperform other pleated elements because our high performance filter media is systematically produced using 100% synthetic fibers, with no binders or additives to leave a residue, foam or contaminate. Our filter media is thicker than other products. For this reason,  Premium Hurricane -Free Cartridges

provide high flow capability, lower overall operating cost,  longer filter runs with fewer change outs.

 Pleated Filters Features

• Filter media is pleated for greater surface area

• Synthetic filter media is cellulose-free

• “Thicker” filter media has a greater capacity to capture and retain particles, compared to thin, more rigid media types, which have less void space for particle retention

• Increased contanminant removal

• All cartridge types and lengths are individually wrapped

Features to using Filters

• High flow capability; long life; reduced filtration costs, compared to wound and spun cartridges.

• No additives or binders, which may cause foaming.

• Increased dirt holding capacity; longer life; fewer cartridge replacements needed; and reduced filtration costs, compared to other pleated cartridge suppliers

• Increased particle removal efficiency; longer life; and reduced cost per gallon filtered

Lower pressure drop for higher flow rates

Filter cartridges are pleated, so initial pressure drop is significantly less compared to depth cartridges, such a wound, spun, melt blown and resin bonded. As a result, higher flow rates are possible, reducing filter housing size requirements to lower capital equipment costs.

Washable & Reusable

Harmsco pleasted filter cartridges are washable and reusable, five micron and up to reduce filtration costs. For best results, direct spray into pleats to dislodge sediment. Or, let dry and brush off filter cake from surface of the media

Applications

• Reverse Osmosis Pre-filtration

• Municipal Drinking Water Filtration

• Commercial/Residential Drinking Water Filtration Desalination

• Pre-filtration

• Industrial Water Filtration

• Cooling Tower Filtration

• Chill Water Loop Filtration

• Food & Beverage Filtration

• Marine / Aquatic Filtration

• Water Bottlers
